Home ProductsKwikstage Scaffolding System

High Performance Kwikstage Scaffolding Components Quick Lock Scaffolding System

High Performance Kwikstage Scaffolding Components Quick Lock Scaffolding System

    • High Performance Kwikstage Scaffolding Components Quick Lock Scaffolding System
    • High Performance Kwikstage Scaffolding Components Quick Lock Scaffolding System
    • High Performance Kwikstage Scaffolding Components Quick Lock Scaffolding System
    • High Performance Kwikstage Scaffolding Components Quick Lock Scaffolding System
  • High Performance Kwikstage Scaffolding Components Quick Lock Scaffolding System

    Product Details:

    Place of Origin: Tianjin
    Brand Name: JET
    Certification: SGS, MTS
    Model Number: Kwikstage scaffolding

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Ton
    Price: negotiable
    Packaging Details: Wooden pallet, steel pallet, or as your request for Kwick Stage Steel Scaffold
    Delivery Time: 15 work days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 1000 Tons / Month
    Contact Now
    Detailed Product Description
    Place Of Origin: Tianjin, China (Mainland) Brand Name: JET
    Model Number: Heavy Duty Scaffolding Type: Kwikstage Steel Scaffold
    Standard: AS 1576 /1577 / 1163 Normal Colo: Silver, Green, Blue, Black
    Standard Material: Q235/Q345 Surface Treatment: Hot Dip Galvanized
    Certificate: SGS, MTS Service: OEM,ODM Available

    Construction Building Materials Steel Scaffold High Performance Scaffolding Kwikstage



    Product Description


    Kwikstage Standard Ι Painted & Hot dipped galvanized I 48.3*4.0mm:



    Size Length Weight (Painted) Weight (Hot-Dipped Galvanized)
    0.5M 495.3mm 3.53kg 3.63kg
    1.0M 990.6mm 6.37kg 6.56kg
    1.5M 1485.9mm 9.21kg 9.48kg
    2.0M 1981.2mm 12.02kg 12.4kg
    2.5M 2476.5mm 14.86 15.33kg
    3.0M 2971.8mm 17.70kg 18.25kg



    Kwikstage Ledger I Painted & Hot dipped galvanized I 48.3*3.0mm:



    Size Length Weight (Painted) Weight (Hot-Dipped Galvanized)
    0.5M 560.0mm 2.79kg 2.87kg
    0.7M 760.0mm 3.48kg 3.58kg
    0.8M 812.0mm 3.66kg 3.76kg
    1.0M 1000.0mm 4.31kg 4.44kg
    1.2M 1270.0mm 5.24kg 5.39kg
    1.8M 1828.0mm 7.17kg 7.38kg
    2.4M 2438.0mm 9.27kg 9.54kg



    Kwikstage Metal Plank:



    Size

    Metrial Weight Surface Standard
    230*63*1.8*2420mm Q235 15.4kg Pre-Galvanized AS1577
    230*63*1.8*1810mm Q235 11.58kg Pre-Galvanized AS1577
    230*63*1.8*1250mm Q235 7.9kg Pre-Galvanized AS1577
    230*63*1.8*1030mm Q235 6.65kg Pre-Galvanized AS1577
    230*63*1.8*740mm Q235 5.0kg Pre-Galvanized AS1577
    230*63*1.8*540mm Q235 3.95kg Pre-Galvanized AS1577



    Kwikstage Base Jack & U head:



    Size Surface Weight Metarial
    Solid Base Jack M34*650 Plate:150*150*8 Galvanized & Painted 5.92kg Q235
    Solid U Head M34*650 Plate:150*150*50*8 Galvanized & Painted 6.86kg Q235
    Hollow Base Jack M38*4*650 Plate:150*150*8 Galvanized & Painted 4.1kg Q235
    Hollow U-Head M38*4*650 Plate:200*200*50*8 Galvanized & Painted 5.04kg Q235

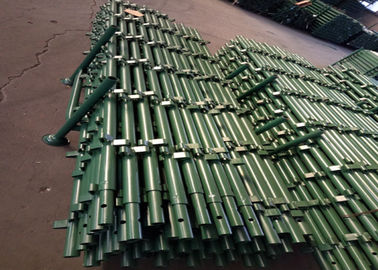

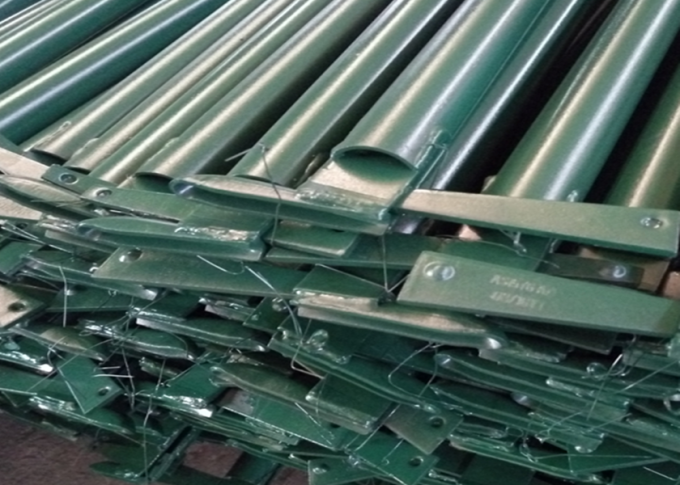

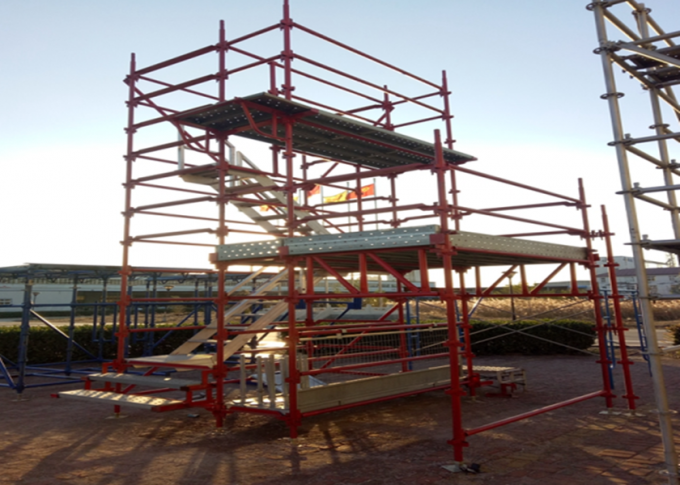

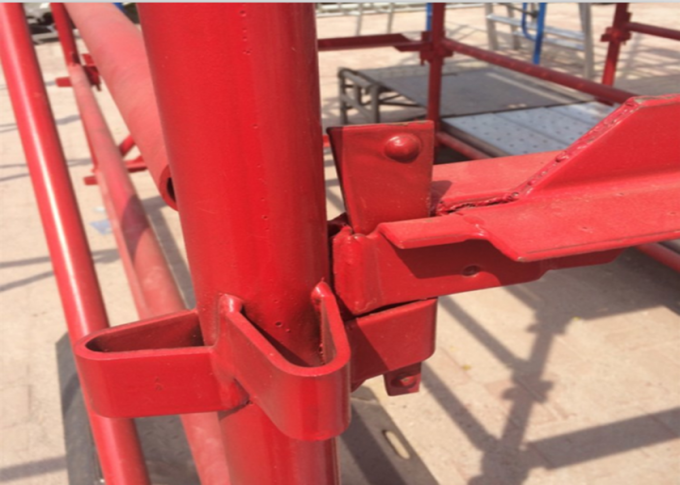

    Product Photos


    High Performance Kwikstage Scaffolding Components Quick Lock Scaffolding System



    High Performance Kwikstage Scaffolding Components Quick Lock Scaffolding System



    High Performance Kwikstage Scaffolding Components Quick Lock Scaffolding System



    Our Advantage


    Our Advantage

    1.Energy saving and environmental protection, save 2/3 steel than bowl button scaffolding .



    2.Hot dip galvanizing process, the service life for more than 15 years.



    3.New carbon steel, high strength mechanical properties, pole load up to 200KN.



    4.Gravity self-locking,can prevent ledger slippage effectively,make the construction more safety.



    5.Easy to remove the tower, save time and effort, the tower speed of the steel pipe fastener scaffolding 4 to 8 times, for the bowl buckle scaffolding 2 times.



    6.Standard modules, efficient management, easy to transport and construction management, reduce the risk of loss damage.



    Our Company


    JET has been established in Guangzhou,China.

    We offer services with material of high standard undisputed quality services with competitive rates.and we provide complete solutions of scaffolding and formwork system to the construction industry.

    Our varied products mix of Ringlock system,Frame system,Steel plank,Steel prop,Scaffolding pipe and all kind of couplers, with high quality for commercial and industrial construction industries.

    Many of our client base are returning customers whom we have known and worked for many years.

    Our products have enjoyed great popular at home and abroad,Such as America,Australia,Europe,the Middle east and so on.


    FAQ

    1. Question: What's your MOQ(minimum order quantity)?

    Answer: One full container.



    2. Question: What's your packing methods?

    Answer: Packed into bundle, and rest in bulk.



    3. Question: What's your payment terms?

    Answer: T/T 30% in advance & T/T 70% upon sending the copy of Bill of Lading, L/ C 100%, or negotiate according to the order status.



    4. Question: What's your delivery time?

    Answer: 10-20 days after received the advance payment or L/C.



    5. Question: Are you manufacturer or trader?

    Answer: We are the munafacturer of SCAFFOLDINGS MATERIALS for decade years. Our group company has 8 subsidiaries and 4 factories, coveraged every scaffolding systems.



    6. Question: Where's your factory?

    Answer: Our factory is in Tianjin city (near Beijing) and Jiayu city, Hubei Province, afforded enough production ability and earlier delivery time.



    7. Question: Can we visit your factory?

    Answer: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.



    8. Question: Can you supply other scaffolding materials?

    Answer: Yes. All related scaffolding materials.

    (1) scaffolding system (cup-lock system, ring lock system, frame, pipe&coupler system)

    (2) scaffolding pipes (1.5'-2.0')x(0.3-12m), hop dipped galvanized/ black. BS1139, STK500

    (3) steel pipes (ERW BS1387, SSAW PIPE, Sqaure/ Rectangular tube GB/T6728)

    (4) steel coupler (preesed / drop forged coupler)

    (5) steel plank with hooks or without hooks

    (6) steel stair case
