Guangzhou Jet Scaffold & Formwork System Co., Ltd.
Quality is the future
 |
| Place of Origin: | Guangzhou |
| Brand Name: | JET |
| Certification: | SGS,GE,GB |
| Model Number: | RS |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Crates, pallets, etc. , or as per customers' request. |
| Delivery Time: | 20 Worker Days |
| Payment Terms: | Western Union, MoneyGram |
| Material: | STK400,STK500,Q345B | Surface Treatment: | Hot Dip Galvanizing,Painted, |
|---|---|---|---|
| Standard: | SGS,ISO,GE,EN BS12811, EN BS12800, AS/NZS1576 |
Factory Made Big Amount Hot Dip Galvanized STK400 Q345 Steel Ringlock Scaffolding Standards Construction Materials

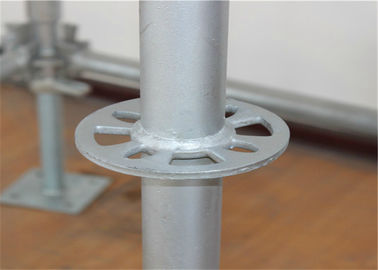

Ringlock / Rosette Lock System Scaffolding Vertical Standard 3M
Engineered for versatility, durability and strength, Ringlock Scaffolding is a universal application system with professional performance. Ideal for use on structures with complicated shapes, plans and elevations, it’s the perfect choice when angular flexibility is important.
|
Name |
Scaffolding Ringlock Standard / Vertical |
|
Tube Size |
48.3*3.25MM, 48.3*3.00MM |
|
Material |
Q235/Q345 |
|
Surface |
Powered Coated, Galvanized, Hot Dipped Galvanized |
|
Height |
500MM/1000MM/1500MM/2000MM/2500MM/3000M |
Ringlock scaffolding system specification

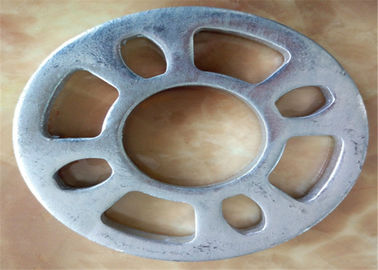

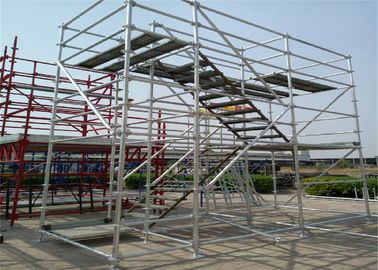

Ringlock scaffolding system is the most advanced all round wedge lock type scaffolding system. This kind of scaffolding system consists of scaffolding standards with ring every 0.5 meter and scaffolding horizontal with ledger end. When connected together, the Ledger end and scaffold ring create a very strong connection.
It is easy to assembly and dismantle by just one person at any height.
The basic components of ringlock scaffolding: scaffolding standard, scaffolding ledger, scaffolding diagonal brace,steel plank and scaffolding base jack.
As the factory with more than 10 years experience in automatic welding production line, we can control the stable and qualified products and meet every customers’ timely specification and delivery requirement.
Product Parameters:
| Part Name | Material | Technology | Outter Diameter | Thickness | Remarks |
| Ringlock Standards | Q345B | HDG or power coated | 48mm/60mm | 3.25mm | size and length can be customized |
| Ringlock Ledgers | Q235B | HDG or power coated | 48mm | 3mm | size and length can be customized |
| Diagonal Brace | Q235B | HDG or power coated | 48mm | 2.75mm | size and length can be customized |
| Ringlock Plank | Q235B | HDG or power coated | NA | 1.5mm | size can be customized |
| Ringlock Jack Base | Q235B | HDG or power coated | 38mm/48mm | 4mm | Base plate: 120*120*6mm; screw: 700*38mm |
Company Information
| Company Name | Guangzhou Jet caffold&formwork System Co., Ltd |
| ISO9001:2015 certified factory for manufacturing and sales of scaffolding | |
| 19years, 120 workers, 60,000 Sqm2 flooring | |
| Auto-welding lines, HDG and painting lines | |
| Products | Scaffolding and formwork system |
| Certification | AS/NZS 1576, ANSI SSFI,SGS,GE |
| Main Products | Scaffolding pipe, Ringlock Scaffold, Cuplock Scaffold,Steel plank,Scaffolding ouplers, Formwork etc. |
Packaging & Delivery
Packaging Details
In bulk or steel pallet or as your request
Packing ringlock scaffolding on standardized pallet
Ringlock Scaffolding Standards 90pcs Per Rack;
Ringlock Scaffolding Ledgers 150pcs Per Rack;
Ringlock Scaffolding Bay Braces 150pcs Per Rack etc.
Port
Guangzhou,Tianjing
Lead Time :
| Quantity(Twenty-Foot Container) | 1 - 1 | 2 - 2 | >2 |
| Est. Time(day) | 15 | 20 | To be negotiated |
