Guangzhou Jet Scaffold & Formwork System Co., Ltd.
Quality is the future
|Place of Origin:||Guangzhou|
|Certification:||SGS, BV, CE|
|Model Number:||Scaffold Ladder Beam|
|Minimum Order Quantity:||1000 Pieces|
|Packaging Details:||1. Scaffolding Frame is bare package , loading in containr 2. In pallet 3. As you required|
|Delivery Time:||15 work days|
|Payment Terms:||Western Union, T/T, L/C, MoneyGram|
|Supply Ability:||50 tons per day|
|Outer Pipe:||48.3 / 3.0 / 48.3 / 3.2 / 48.3 / 4.0||Length:||1000 / 2000 / 3000 / 4000 / 6000 / 7000 Mm|
|Type:||Round Tube Without Hook||Standard:||EN12811 / ANSI-SSFI SC100|
|Width:||300 / 305 Mm Or OEM||Certification:||SGS, BV, CE|
|Color:||As Your Request||Thickness:||1.5-4mm Or As Your Requirement|
pump jack scaffolding,
swivel coupler scaffolding

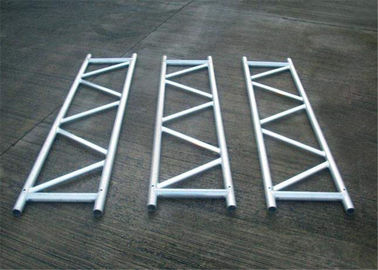

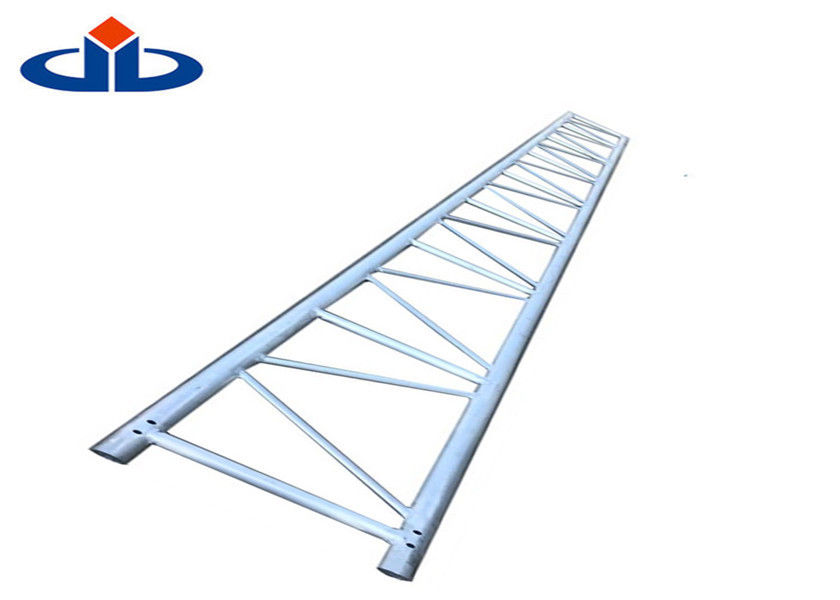

Light Weight Material Strong Capacity Steel Ladder Beam Capacity Ringlock Scaffold For Construction Using
1. Material: Q235, Q345
2. Advantage: antirust, skid proof
3. Surface treatment: painted or galvanized
4. OEM service
5. Quick to install, save in time and labour
6. We can do as customer`s need.
|Dip Painting(kgs)||Hot dip Galvanization (kgs)|
|STANDARDS OF 3000MM||17.50||18.38||Φ48.3x.4.0mm steel tube|
|STANDARDS OF 2500MM||14.50||15.23|
|STANDARDS OF 2000MM||11.70||12.29|
|STANDARDS OF 1500MM||8.80||9.24|
|STANDARDS OF 1000MM||6.50||6.83|
|STANDARDS OF 500MM||3.60||3.78|
|LEDGERS OF 2438MM||8.90||9.00||Φ48.3 x 3.2mm steel tube|
|LEDGERS OF 1829MM||6.90||7.20|
|LEDGERS OF 1270MM||5.30||5.45|
|LEDGERS OF 812MM||3.70||3.80|
|LEDGERS OF 760MM||3.30||3.40|
|LEDGERS OF 560MM||2.40||2.50|
|TRANSOMS OF 2400MM||23.00||23.70||50x50x5mm angle steel|
|TRANSOMS OF 1800MM||16.20||16.70|
|TRANSOMS OF 1200MM||9.40||9.50|
|TRANSOMS OF 1000MM||9.10||9.20|
|TRANSOMS OF 800MM||5.60||5.70|
|TRANSOMS OF 700MM||5.40||5.50|
|TRANSOMS OF 500MM||4.30||4.50|
|BRACES OF 3600MM||14.30||15.10||Φ48.3 x 3.2mm steel tube, 5 mm steel plate|
|BRACES OF 3200MM||12.70||13.60|
|BRACES OF 2900MM||11.70||12.30|
|BRACES OF 2700MM||11.00||11.70|
|BRACES OF 2500MM||10.10||10.60|
|BRACES OF 2400MM||8.50||10.20|
|BRACES OF 2000MM||7.90||8.90|
|BRACES OF 1700MM||9.70||8.20|
|BRACES OF 1300MM||6.00||6.20|
|ONE BOARD BRACKET||2.20||2.30|
|TWO BOARDS BRACKET||6.20||6.40|
|THREE BOARDS BRACKET||11.00||11.30|
|STEEL PLANK OF 2400MM||14.40||1.8mm thickness steel plate|
|STEEL PLANK OF 1800MM||11.52|
|STEEL PLANK OF 1200MM||8.00|
|STEEL PLANK OF 700MM||5.00|
1. Energy saving and environmental protection, save 2/3 steel than bowl button scaffolding .
2. Hot dip galvanizing process, the service life for more than 15 years.
3. New carbon steel, high strength mechanical properties, pole load up to 200KN.
4. Gravity self-locking,can prevent ledger slippage effectively,make the construction more safety.
5. Easy to remove the tower, save time and effort, the tower speed of the steel pipe fastener scaffolding 4 to 8 times, for the bowl buckle scaffolding 2 times.
6. Standard modules, efficient management, easy to transport and construction management, reduce the risk of loss damage.
JET has been established in Guangzhou,China.
We offer services with material of high standard undisputed quality services with competitive rates.and we provide complete solutions of scaffolding and formwork system to the construction industry.
Our varied products mix of Ringlock system,Frame system,Steel plank,Steel prop,Scaffolding pipe and all kind of couplers, with high quality for commercial and industrial construction industries.
Many of our client base are returning customers whom we have known and worked for many years.
Our products have enjoyed great popular at home and abroad,Such as America,Australia,Europe,the Middle east and so on.
1. Question: What's your MOQ(minimum order quantity)?
Answer: One full container.
2. Question: What's your packing methods?
Answer: Packed into bundle, and rest in bulk.
3. Question: What's your payment terms?
Answer: T/T 30% in advance & T/T 70% upon sending the copy of Bill of Lading, L/ C 100%, or negotiate according to the order status.
4. Question: What's your delivery time?
Answer: 10-20 days after received the advance payment or L/C.
5. Question: Are you manufacturer or trader?
Answer: We are the munafacturer of SCAFFOLDINGS MATERIALS for decade years. Our group company has 8 subsidiaries and 4 factories, coveraged every scaffolding systems.
6. Question: Where's your factory?
Answer: Our factory is in Tianjin city (near Beijing) and Jiayu city, Hubei Province, afforded enough production ability and earlier delivery time.
7. Question: Can we visit your factory?
Answer: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
8. Question: Can you supply other scaffolding materials?
Answer: Yes. All related scaffolding materials.
(1) scaffolding system (cup-lock system, ring lock system, frame, pipe&coupler system)
(2) scaffolding pipes (1.5'-2.0')x(0.3-12m), hop dipped galvanized/ black. BS1139, STK500
(3) steel pipes (ERW BS1387, SSAW PIPE, Sqaure/ Rectangular tube GB/T6728)
(4) steel coupler (preesed / drop forged coupler)
(5) steel plank with hooks or without hooks
(6) steel stair case
Contact Person: Elena
