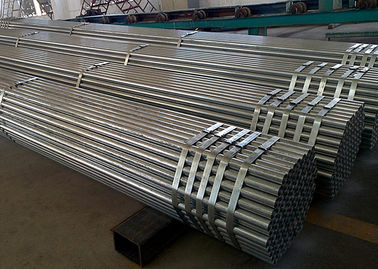

Thread Aluminum Pipe Scaffolding 48mm Scaffold Tube Electronic Resistance Welded

Thread Aluminum Pipe Scaffolding 48mm Scaffold Tube Electronic Resistance Welded

    • Thread Aluminum Pipe Scaffolding 48mm Scaffold Tube Electronic Resistance Welded
    • Thread Aluminum Pipe Scaffolding 48mm Scaffold Tube Electronic Resistance Welded
    • Thread Aluminum Pipe Scaffolding 48mm Scaffold Tube Electronic Resistance Welded
  • Thread Aluminum Pipe Scaffolding 48mm Scaffold Tube Electronic Resistance Welded

    Product Details:

    Place of Origin: Guangzhou
    Brand Name: JET
    Certification: SGS,BS,JIS
    Model Number: 48 mm OD

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 piece
    Price: negotiable
    Packaging Details: 1,Usually bundles by steel strips. 2,Bundles with plastic film. 3,Black painting
    Delivery Time: 7 days
    Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
    Supply Ability: 100000 piece per month
    Contact Now
    Detailed Product Description
    Standard: SGS,CE,EN,JIS.BS,GB Material: Steel Q235,Stk 500
    Thickness: 2 - 4.5 Mm Special Pipe: Scaffolding Tube
    Outer Diameter: 48.3 Mm ,1.5 In Surface Treatment: GI,Hot Dipped Galvanized,Pre Galvanized
    Technique: ERW Length: 1 - 12 M

    Gi Pipe 1.5 inch Galvanized Steel Pipe Scaffold Tube Building Material St37 Welded Low Carbon





    Scaffolding Tube description
    OD 48.3mm
    Length Less Than 12m
    Wall Thickness 2.2-3.75mm
    Steel material STK500,JISG3444-2006
    Ends 1) Plain
    2) Beveled
    3)Thread with Coupling or cap
    4)Bending
    End protector 1) Plastic pipe cap
    2) Iron protector
    Surface Treatment 1) Bared
    2) Black Painted or other colors painted(varnish coating)
    3) Galvanized
    4) With Oiled
    Inspection With Hydraulic Testing, Eddy Current , Infrared Test
    Standard STK500,JISG3444-2006
    Technique Electronic Resistance Welded (ERW )
    Electronic Fusion Welded (EFW)
    Double Submerged Arc Welded (DSAW)
    Trade terms
    Packing Term 1) In bundle with steel strips;
    2) First packing by plastic bag then strips
    3) In bulk
    4)Client' requirements
    Delivery Term 1) Container: 25 tons/container for pipe with usual outer diameter.
    For 20' container the max length is 5.85m;
    For 40" container the max length is 11.8m.
    2) Bulk carrier: It is no requirements to the length of the pipe.
    But its booking space time is long.

































































    BS EN39:2001
    Outer Diameter Wall Thickness Weight
    mm Tolerance mm Tolerance max K.G / meter Tolerance max

    48.3mm

    1 1/2"

    ±0.5mm 3.2 -10% 3.6 -7.5%
    4.0 4.0



    Scaffold Tubes Building Material St37 Galvanized Steel Pipe

    Commodity hot dipped and pre-galvanized steel pipe
    OD 10-600mm(round)
    thickness 1.2-30mm
    length 3-12m or as per customers' requirements



    material

    Q195-Grade B, SS330, SPC, S185

    Q215-Grade C,CS Type B, SS330, SPHC

    Q235---Grade D, SS400, S235JR, S235JO, S235J2

    Q345---SS500, ST52

    Standard




    GB/T13793-1992,GB/T14291-2006, GB/T3091-1993,GB/T3092-1993,GB3640-88



    BS1387/1985,ASTM A53/A36,EN39/EN10219,API 5L,

    GB/T9711.1-99 etc



    zinc coating

    pre galvanized steel pipe: 60-150g/m2

    hot dipped galvanized steel pipe:200-400g/m2

    application

    Widely used in Structure, Accessorize,Construction,

    Fluid transportation,machinery parts,the stress

    parts of the automobile

    tractor parts and so on







    Package

    1) Big OD: in bulk

    2) Small OD: packed by steel strips

    3) Plastic bags

    4) According to customer's requirement

    Delivery Normally 7-20 days after get deposits or according to quantity
    Certification

    ISO 9001-2008 BV TUV






    advantage



    1. reasonable price with excellent quality



    2, abundant stock and prompt delivery



    3, rich supply and export experience, sincere service





    Our Services

    <1> Owning professional exporting&sales team for years, we could supply you lots kinds of steel materials with the best quality,price and service.

    <2> Both large quantity order and small order are available for us, as well as the customized order.

    <3> Third Party Inspection is accepted as customer's request.



    FAQ

    1. How long is your delivery time?

    Normally, it's 15days after depoist or L/C received, but it will depend on the production schedule of mills(it can be finished within a week if coincidentally)



    2. What kinds of payment terms we can use?

    T/T or L/C at sight



    3. How about your MOQ?

    Generally, MOQ is a container(about 20MT) for the customized products, first time cooperation, trial order is acceptable





    any question about galvanized steel pipe, welcome to contact with us, then more detailed information will be provided:
