Guangzhou Jet Scaffold & Formwork System Co., Ltd.
Quality is the future
 |
| Place of Origin: | China |
| Brand Name: | JET |
| Certification: | SGS |
| Model Number: | SJ |
| Minimum Order Quantity: | 500 PCS |
|---|---|
| Price: | negotiable |
| Packaging Details: | General seaworthy packing for Scaffolding base jack |
| Delivery Time: | 10 working days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T, D/A |
| Supply Ability: | 50000 piece each month |
| Brand Name: | Base Jacks | Surface Treatment: | Panted,galvanized |
|---|---|---|---|
| Material: | Steel | Leight: | 300mm,500mm,600mm,700mm,1000mm |
| Certificate: | ISO9001:2000 | Name: | Scaffolding Leveling Jacks |
scaffolding ringlock system cup lock system frame syste scaffolding leveling floor lift screw jacks base

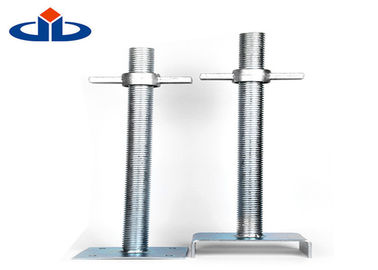

Scaffolding Accessories Base Jack/Screw Jack
1. Description Of Scaffolding Screw Jack
The Screw Jack is made from a 1 3/8 inch Solid Stem, or a 1 3/8 inch Hollow Tube, with 6" x 6" base & a large wing nut
2, adjustment. Thread Screw jacks are the accessory used to safely adjust the scaffold legs. This may be necessary when
different working heights are encountered or when the scaffold is mounted on sloped surfaces.
3. Requirement of scaffolding screw jack
a. High loading ability
b. Flexiable and safe
c. Long adjustable length
d. Precision shape
e. Keep a smooth stress
f. Various type and size
Scaffolding Screw Leveling Jacks with base plate
| Name | Type | Size | |
| Screw rod(mm) | Base plate(mm) | ||
| Adjustable Base Jacks | Hollow | 38x4x600 | 150x150x5 |
| 42x4x600 | 150x150x5 | ||
| 48x4x600 | 150x150x5 | ||
| 38x5x400 | 150x150x5 | ||
| 38x5x500 | 150x150x5 | ||
| 38x5x600 | 150x150x5 | ||
| 42x5x500 | 150x150x5 | ||
| 42x5x750 | 150x150x5 | ||
| 48x5x400 | 150x150x5 | ||
| 48x5x500 | 150x150x5 | ||
| 48x5x600 | 150x150x5 | ||
| Solid | 30x400 | 120x120x5 | |
| 30x600 | 120x120x5 | ||
| 32x400 | 120x120x5 | ||
| 32x600 | 120x120x5 | ||
| 34x400 | 120x120x5 | ||
| 34x600 | 120x120x5 | ||
| 35x400 | 150x150x5 | ||
| 35x500 | 150x150x5 | ||
| 35x600 | 150x150x5 | ||
| 38x500 | 150x150x5 | ||
| 38x750 | 150x150x5 | ||
| 45x400 | 150x150x5 | ||
| 45x500 | 150x150x5 | ||
| 45x600 | 150x150x5 | ||
| Adjustable U Head Jacks | Solid | 30x400 | 150x120x50x5 |
| 30x600 | 150x120x50x5 | ||
| 32x400 | 150x120x50x5 | ||
| 32x600 | 150x120x50x5 | ||
| 34x400 | 150x120x50x5 | ||
| 34x600 | 150x120x50x5 | ||
| Description | Max. Extension | Overall Height | ||
| Inches | Meters | Inches | Meters | |
| 21 In system Jack | 15 | 0.38 | 21.22 | 0.54 |
| 24 In system Jack | 18 | 0.46 | 24.31 | 0.62 |
| 20 CM system Jack | 5 | 0.13 | 7.87 | 0.2 |
| 30 CM system Jack | 7.5 | 0.19 | 11.81 | 0.3 |
| 40 CM system Jack | 10 | 0.26 | 15.75 | 0.4 |
| 80 CM system Jack | 21 | 0.53 | 31.5 | 0.8 |
Construction Scaffolding Material:
(1). System scaffolding material:
Include: Kwikstage system scaffolding and accessories; Ring lock system scaffolding and accessories; Cup lock system scaffolding and accessories; Haki system scaffolding and accessories.
(2).Scaffolding Coupler / Clamp:
We can manufacture all kinds of couplers, include: British type couplers, Italian type couplers, German type couplers, American type couplers, and many other kinds of couplers as per your drawings.
(3). Frame scaffolding
Mainly include: Ladder type frames and walk through (door type) frames, we can also manufacture as per your drawings.
(4). Shoring Prop / Steel prop
Quality shoring props of different specifications can be manufactured in our factory.
(5).Scaffold Plank / Toe Board:
Both aluminum and steel planks can be manufactured in our factory.
(6). Other scaffolding material
We can also manufacture fences, ladders, steel trays and other related products that are needed in the erection of scaffolding.
